R290 Refrigerant
Due to accelerated global warming and the destruction of the ozone layer, various international conventions and meetings are held to enhance restrictions to the use of refrigerant or enforce the use of eco-conscious refrigerant R290 is internationally acclaimed for being eco-friendly. This low volume refrigerant is as efficient as any conventional refrigerant but boasts a 68% reduced global warming potential. Therefore Greenpower develops R290 monobloc DC Inverter heat pump, contributing to the reduction of carbon emission and help achieve the global goal of carbon neutrality.
Energy efficiency, high class A+++

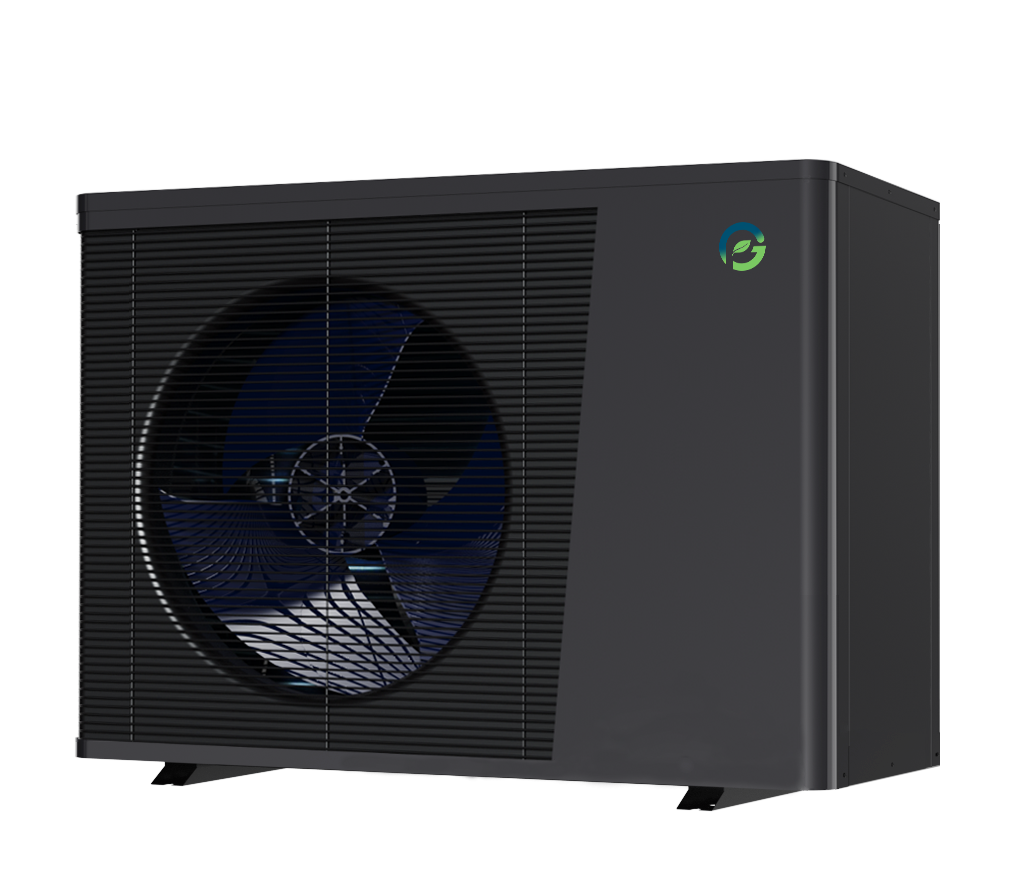

Greenpower R290 monobloc DC Inverter heat pump is specially developed with the most cutting-edge heat pump technology and modern design to meet stringent requirements for efficiency, stability and quietness. Not only does Greenpower heat pumps use R290 green gas and inverter technology, but also is rated with A+++ energy label. With top energy rating A+++, the unit is energy efficient and can greatly reduce energy bills for users.
Wide operation range
In heating mode, Greenpower R290 monobloc DC Inverter heat pump can work at lowest temperature to -25°C, and maximum output temperature 75°C, which can be the best choise for old radiators need high water temperature.
| Line-up |
R290 Monobloc |
1Ø : 6 / 9 / 12 / 16kW
3Ø : 16kW |
|
|
| Application |
 |
| Energy Label |
 |
 |
| Operation Range (heating) |
Outdoor Air |
-25 ~ 45°C |
| Leaving Water |
10 ~ 75°C |
| Customer Needs |
Designer & Installer |
1. Don't want refrigerant piping work 2. Using existing facilities for conventional boiler 3. Saving installation and commissioning time 4. No indoor unit |
| End-User |
1. Low operation cost 2. Control integration between boiler and heat pump 3. Reliable operation and long lifetime 4. Remote control by smartphone 5. Easy and intuitive controls 6. Quiet operation |
| - Don't want to install refrigerant piping indoors |
| Approach |
1. High energy efficiency 2. Wi-Fi control solution 3. Interlocking operation with 3rd party boiler 4. High corrosion resistance heat exchanger 5. Low noise mode operation with schedule setting |
- All in one concept (no refrigerant piping work)
|
| Benefit |
1. Multiple solution (heating, cooling and DHW supply) 2. Hybrid operation with existing facilities 3. Energy saving by utilizing renewable 4. Quick & easy installation and commissioning 5. Economic support by incentive program energy and high efficient equipment |
- Simple replacement of existing boiler while maintaining the existing heating system
- Saving mechanical room space |

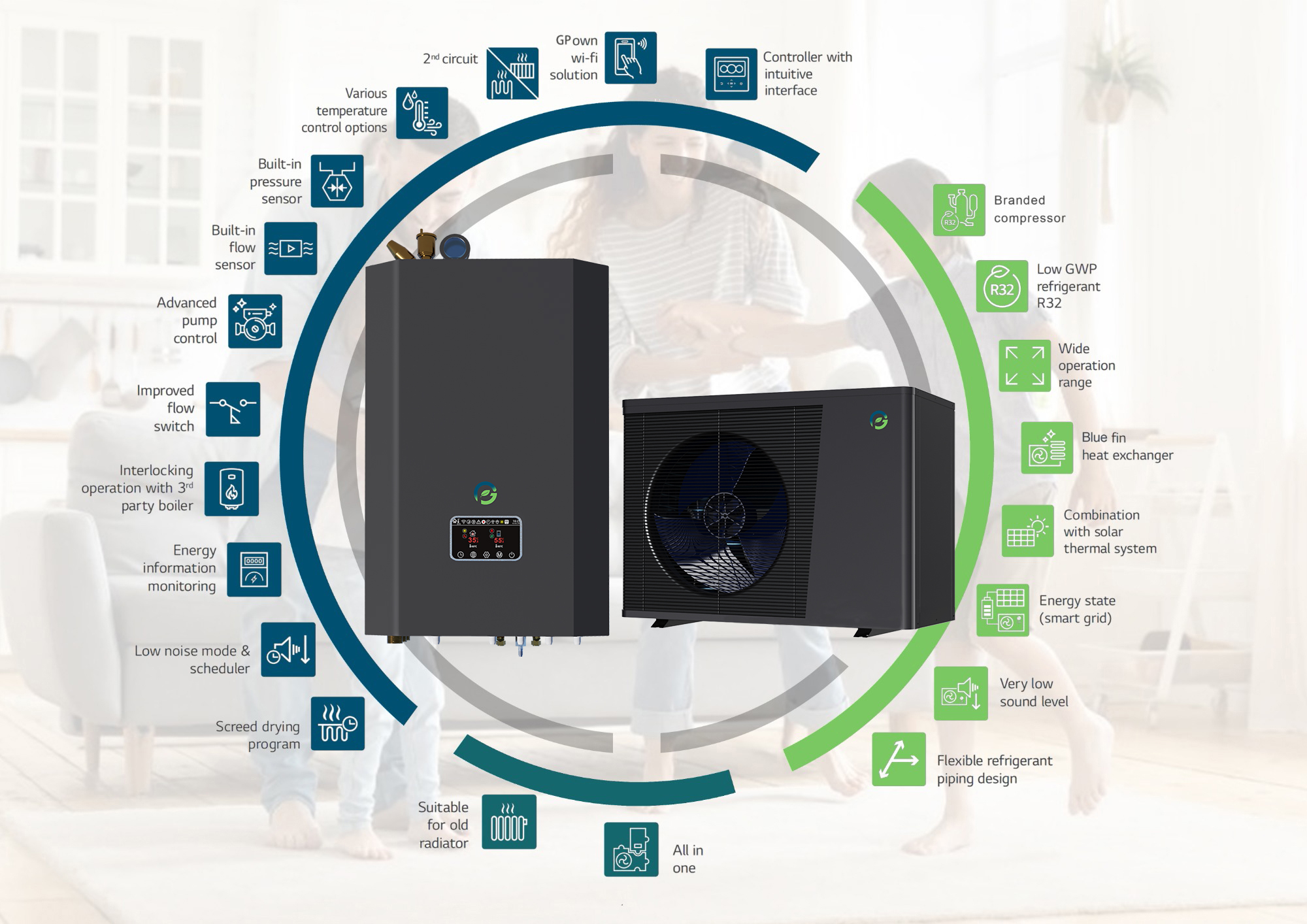

Unique Features
User Convenience | Green power R290 monobloc DC Inverter heat pump is equipped with various user convenience functions, which allow for enhanced comfort and control. The textbased user-friendly interface on the remote control allows for optimized user intuition and the unit's wide connectivity also provide user control convenience.
Excellent Performance & Efficiency | Green power R290 monobloc DC Inverter heat pump provides world-class energy efficiency by adopting revolutionary technology. The products have achieved a high heating performance even in extremely cold weather conditions and can bring customers peace of mind through product reliability.
Easy Installation & Maintenance | Green power R290 monobloc DC Inverter heat pump offers installation and design flexibility to professional installers.The Heating Configurator also allows professionals to save time during commissioning. During maintenance, the clip type connection allows fast and easy disassembly of the components.
SG Ready and Smart Grid
Green power R290 monobloc DC Inverter heat pump is operated automatically according to the status signals received from power supply companies.This function can correspond to each country’s specific tariff for heat pump application on smart grids.
Controller with Intuitive Interface
Green power R290 monobloc DC Inverter heat pump is equipped with privately designed, 5 inch colorful touch screen, which is very friendly-use for clients, and has the very simple interface to show the power consumption daily, monthly and yearly.
Bring You A Silent time
Green power R290 monobloc DC Inverter heat pump adopts super quiet full DC inverter compressor and full DC inverter fan motor system which could bring you a very silent time. Meanwhile, it could provide a special silent mode which could be more silent and no bother to your neighbors.
Specification

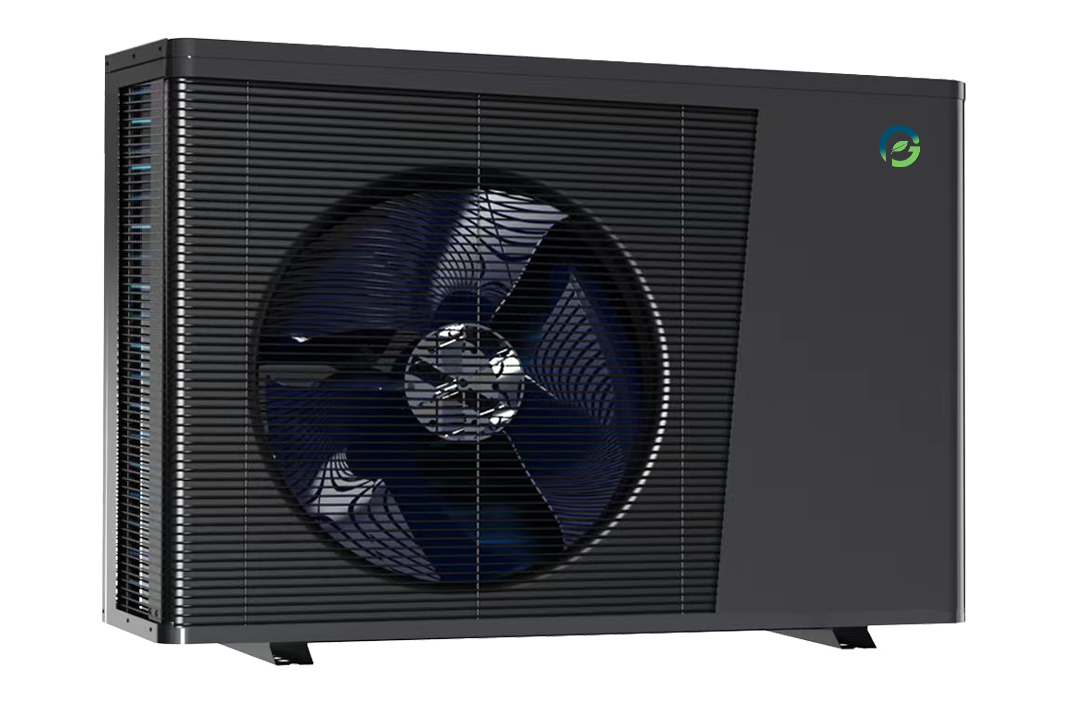

Outdoor：
| Model： |
|
Master plus 60 |
Master plus 90 |
Master plus 120 |
Master plus 160 |
Master plus 120-TRI |
Master plus 160-TRI |
| Heating Capacity Range |
kW |
1.5-7 |
2-10 |
3-13 |
4-18 |
3-13 |
4-18 |
| Heating (A7/6℃,W30/35℃) |
Heating Capacity |
kW |
6.2 |
9.2 |
12.1 |
16.2 |
12.1 |
16.2 |
| Power Input |
kW |
1.36 |
2.02 |
2.67 |
3.58 |
2.66 |
3.56 |
| Current |
A |
5.91 |
8.83 |
11.43 |
15.26 |
4.41 |
5.89 |
| COP |
W/W |
4.56 |
4.55 |
4.53 |
4.52 |
4.55 |
4.55 |
| Heating (A7/6℃,W47/55℃) |
Heating Capacity |
kW |
6.1 |
9.10 |
12.01 |
16.10 |
12.10 |
16.10 |
| Power Input |
kW |
2.07 |
3.06 |
4.15 |
5.56 |
4.05 |
5.43 |
| COP |
W/W |
2.95 |
2.97 |
2.89 |
2.90 |
2.99 |
2.97 |
| Cooling (A35/24℃,W23/18℃) |
Cooling Capacity |
kW |
6.3 |
9.02 |
11.30 |
15.10 |
11.30 |
15.20 |
| Power Input |
kW |
1.62 |
2.33 |
2.95 |
3.96 |
2.91 |
3.98 |
| EER |
W/W |
3.89 |
3.87 |
3.83 |
3.81 |
3.88 |
3.82 |
| Rated water flow |
|
m3/h |
1.1 |
1.6 |
2.08 |
2.8 |
2.08 |
2.8 |
| Rated voltage /Frequency |
V/Hz |
220~240/50 |
220~240/50 |
220~240/50 |
220~240/50 |
380~415/50 |
380~415/50 |
| Maximum input power |
kW |
2.20 |
3.50 |
4.70 |
6.60 |
4.70 |
6.50 |
| Maximum input current |
A |
12.0 |
15.0 |
20.0 |
28.0 |
8.0 |
11.0 |
| Brand/Type of Compressor |
/ |
GMCC/Rotary |
GMCC/Rotary |
GMCC/Rotary |
GMCC/Rotary |
GMCC/Rotary |
GMCC/Rotary |
| Refrigerant |
/ |
R290 |
R290 |
R290 |
R290 |
R290 |
R290 |
| Air flow |
m3/h |
3500 |
4000 |
4500 |
8000 |
4500 |
8000 |
| Brand of Water pump |
|
WILO or SHIMGE |
WILO or SHIMGE |
WILO or SHIMGE |
WILO or SHIMGE |
WILO or SHIMGE |
WILO or SHIMGE |
| Water pump Model |
|
Para 15-130/7 |
Para 15-130/7 |
Para 25-130/9 |
Para 25-130/9 |
Para 25-130/9 |
Para 25-130/9 |
| Defrost |
/ |
4 way valve |
4 way valve |
4 way valve |
4 way valve |
4 way valve |
4 way valve |
| Waterproof grade |
/ |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
| Noise pressure ( at 1m) |
dB(A) |
45 |
46 |
47 |
51 |
47 |
51 |
| Max water outlet temperature |
°C |
75 |
75 |
75 |
75 |
75 |
75 |
| Min/Max outdoor air (heating mode ) |
°C |
-25/45 |
-25/45 |
-25/45 |
-25/45 |
-25/45 |
-25/45 |
| Min/Max outdoor air (cooling mode ) |
°C |
15/45 |
15/45 |
15/45 |
15/45 |
15/45 |
15/45 |
| Net Dimensions ( L/W/H ) |
mm |
976/450/688 |
1106/450/835 |
1106/450/835 |
1106/450/1603 |
1106/450/835 |
1106/450/1603 |
| Package Dimensions ( L/W/H ) |
mm |
1100/455/780 |
1150/455/913 |
1150/455/913 |
1150/455/1671 |
1150/455/913 |
1150/455/1671 |
Exegesis：The products' specification may be updated without prior notice, please refer to the data in the nameplate as the final.

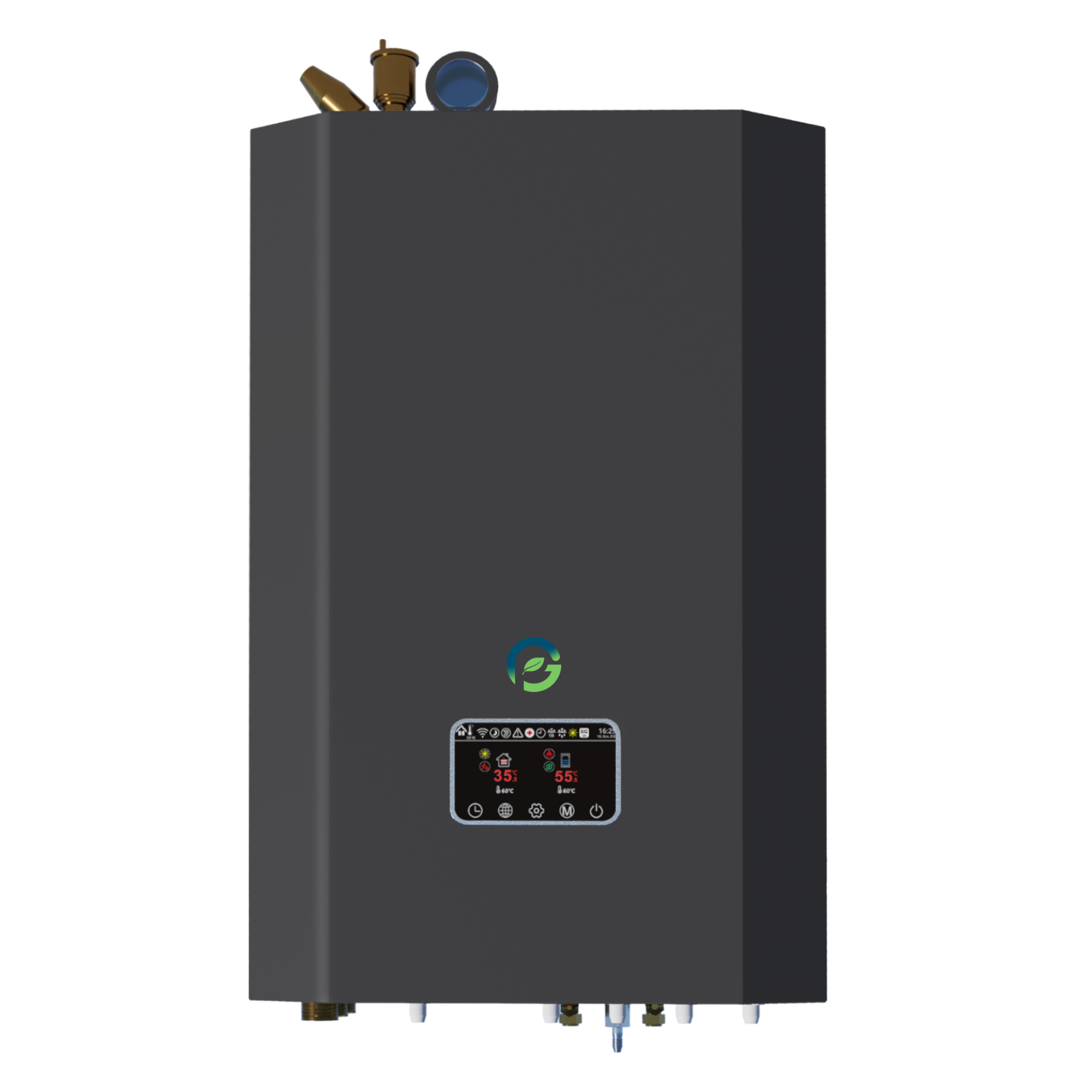

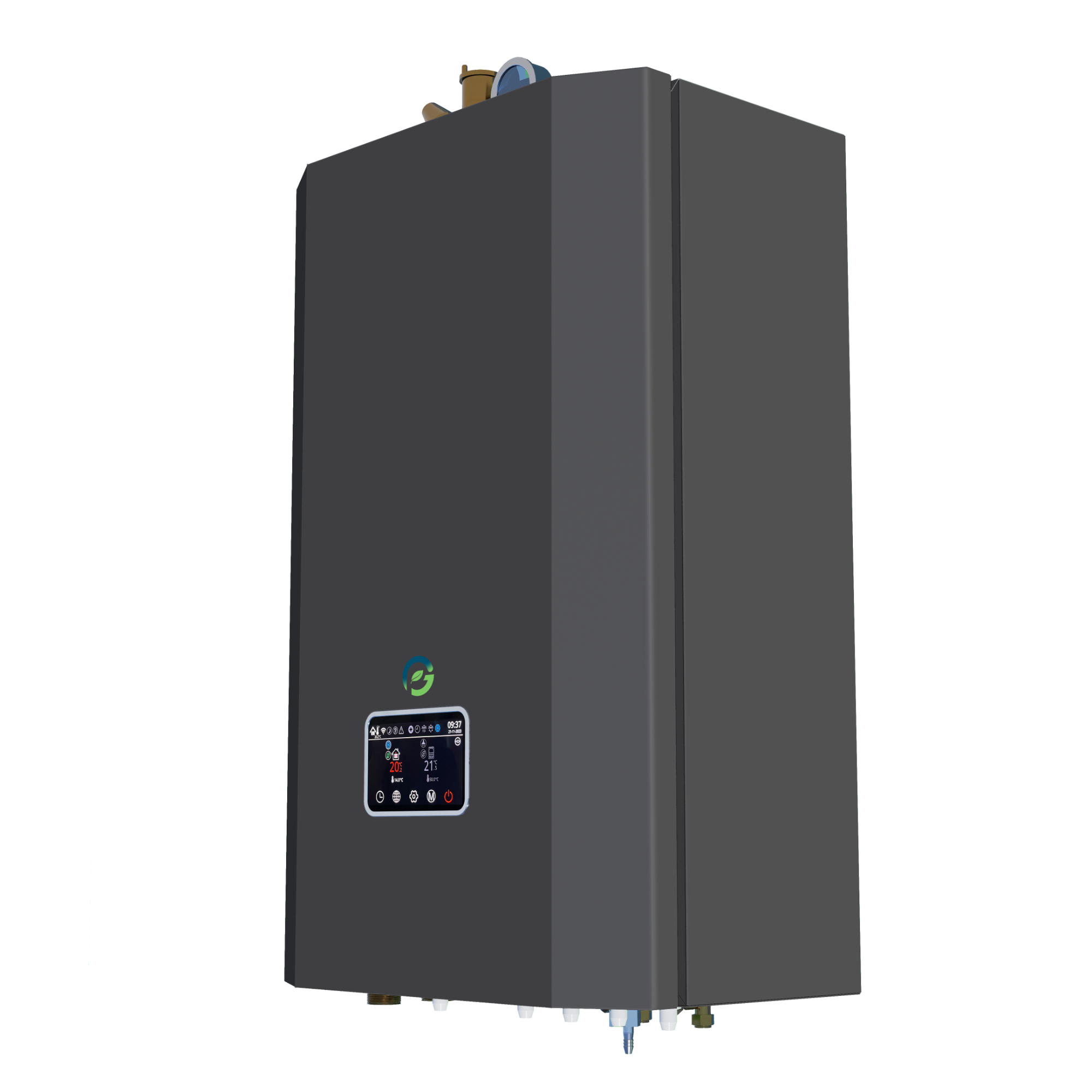

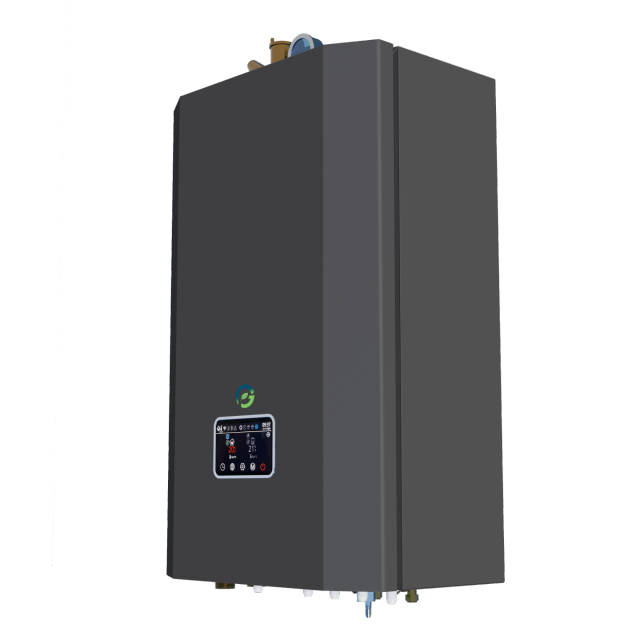

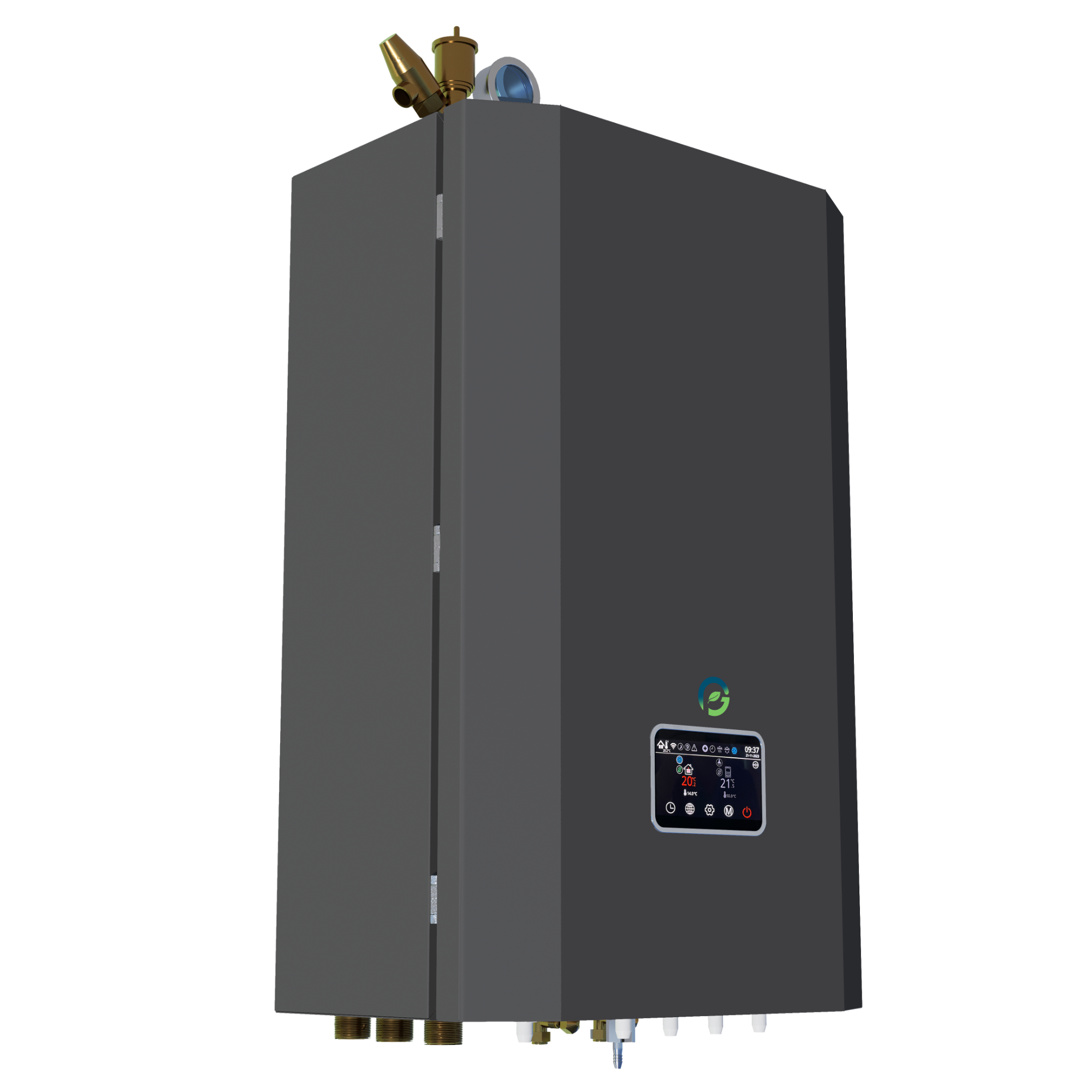

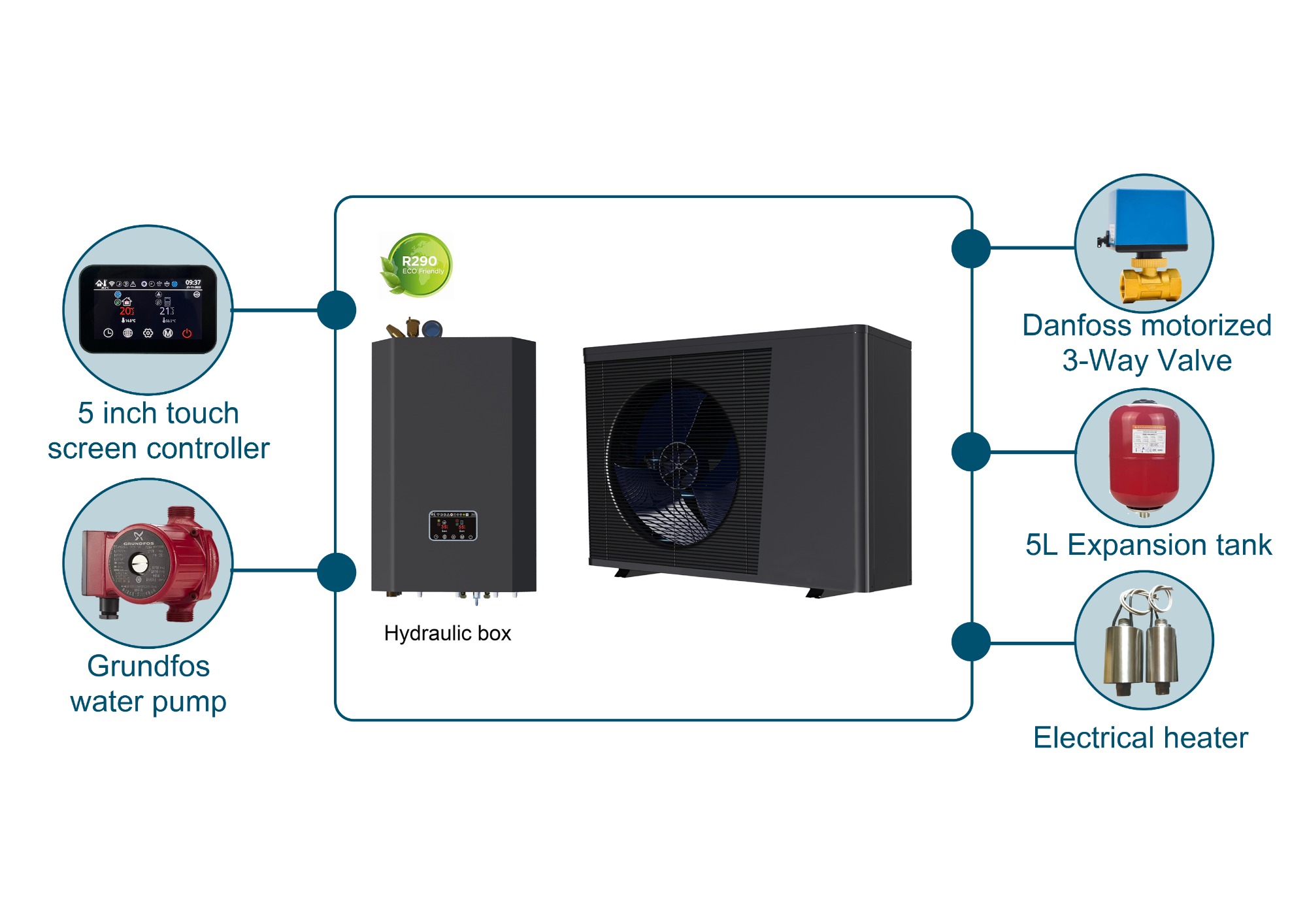

Indoor：
| Model number |
|
/ |
GP-HYDRO-3 |
GP-HYDRO-6 |
GP-HYDRO-9 |
| Expansion valve |
|
L |
5 |
5 |
5 |
| Electric heater power |
|
kW |
3.0 |
6.0 |
9.0 |
| Rated voltage /Frequency |
V/Hz |
220~240/50 |
380~415/50 |
380~415/50 |
| Rated input Current |
A |
13 |
10 |
13 |
| Water flow meter |
|
/ |
1" |
1" |
1" |
| Brand of water pump |
|
/ |
Wilo/Grundfos/Shimge |
Wilo/Grundfos/Shimge |
Wilo/Grundfos/Shimge |
| Brand of motorized 3 way valve |
|
/ |
Danfoss |
Danfoss |
Danfoss |
| Y filter |
/ |
Included |
Included |
Included |
| Water pressure gauge |
/ |
Included |
Included |
Included |
| Water grade |
/ |
IPX4 |
IPX4 |
IPX4 |
| Diameter of water connection |
/ |
DN 25 (G1") |
DN 25 (G1") |
DN 25 (G1") |
| Net Weight for indoor unit |
|
kg |
25 |
26 |
27 |
| Gross Weight for indoor unit |
|
kg |
28 |
29 |
30 |
| Net Dimensions ( L/W/H ) for indoor unit |
mm |
386/275/667 |
386/275/667 |
386/275/667 |
| Package Dimensions ( L/W/H ) for indoor unit |
mm |
421/310/699 |
421/310/699 |
421/310/699 |
